[TRNSYS-users] TRNSYS - CONTAM Coupling Issue (Windows Not Visible in TRNBuild)

[Dols, William Stuart (Fed)]

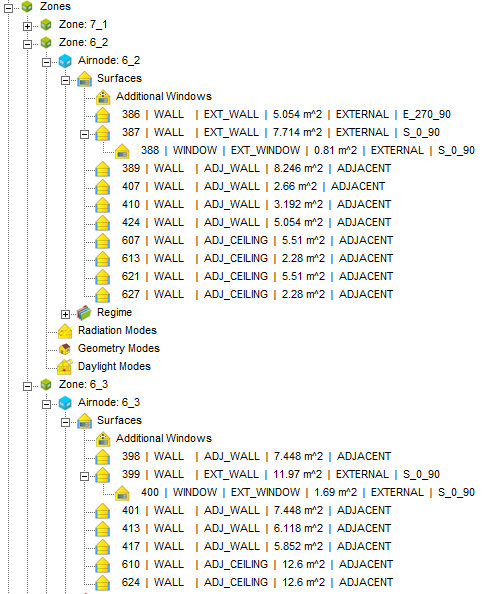

So this is what I see in TRNBuild Navigator after importing the DCK file that was created with the CONTAM 3D Exporter 3.4.0.2.
Each window should appear below the Surface with which it is associated.
Is this different from what you are seeing?

I am using TRNSYS 18.06.0002

[cid:image001.png at 01DB9CAB.31673670]





- Stuart



-----Original Message-----
From: PONS Catherine <catherine.pons at ens-paris-saclay.fr>
Sent: Monday, March 24, 2025 9:53 AM
To: Dols, William Stuart (Fed) <william.dols at nist.gov>
Cc: TRNSYS users mailing list at OneBuilding.org <trnsys-users at lists.onebuilding.org>
Subject: Re: [TRNSYS-users] TRNSYS - CONTAM Coupling Issue (Windows Not Visible in TRNBuild)



Hello,



Please find attached the Contam file in .prj format.

Thank you for your help.



Best regards,

Catherine



"Dols, William Stuart (Fed)" <william.dols at nist.gov<mailto:william.dols at nist.gov>> a écrit :



> Can you share the CONTAM PRJ file?

> I can run it through the coupling process to check it out.

>

> - Stuart

>

> W. Stuart Dols

> National Institute of Standards and Technology Engineering Laboratory

> Indoor Air Quality and Ventilation Group

>

> -----Original Message-----

> From: TRNSYS-users <trnsys-users-bounces at lists.onebuilding.org<mailto:trnsys-users-bounces at lists.onebuilding.org>> On

> Behalf Of PONS Catherine via TRNSYS-users

> Sent: Friday, March 21, 2025 5:28 AM

> To: trnsys-users at lists.onebuilding.org<mailto:trnsys-users at lists.onebuilding.org>

> Cc: PONS Catherine <catherine.pons at ens-paris-saclay.fr<mailto:catherine.pons at ens-paris-saclay.fr>>

> Subject: [TRNSYS-users] TRNSYS - CONTAM Coupling Issue (Windows Not

> Visible in TRNBuild)

>

> Hello,

>

> I am experiencing a difficulty in coupling TRNSYS with CONTAM.

>

> My CONTAM file includes windows, and I exported it using CONTAM3D into

> a TRNSYS file. However, in TRNBuild Navigator, when I select a zone

> and click on "Wall Ext," the windows are not visible. However, they do

> appear under "Additional Window."

>

> I am using the latest version of TRNSYS. Do you have any idea what

> might be causing this issue?

>

> Thank you in advance for your help.

> Catherine PONS

>
