[TRNSYS-users] Problem with adjacent window

[hotline]

Hi Toni,

you said you are using an internal shading factor for the adjacent window, right? In contrast to external shading, which just uses a simple factor to determine the shading (ESHADE = 1 -> Transmission = 0), internal shading is modelling  much more detailed effects, see image below:

[cid:d15e07e6-332b-4c95-b946-159e92f487cd]
Of all the radiation coming in through the window, a part is absorbed by the shading device and then released to the airnode through convection, some is reflected towards the window, again there we have absorption, convection and reflection back towards the zone and so on. Therefore, an internal shading device can never prevent all solar gains from entering a zone. Please see 5.2.4.6. Definition of a New Window Type and 5.4.2.9. External and Internal Shading Devices of the Multizone Building part in the TRNSYS Documentation for more info on this.

Best regards,
Christina
__________________________________________________________________________________________________


Transsolar KlimaEngineering

Stuttgart  | München | Paris | New York



Transsolar Energietechnik GmbH | Curiestraße 2 | 70563 Stuttgart

Geschäftsführer: Matthias Schuler, Thomas Auer, Stefan Holst, Dieter Schnelle

Registered at Amtsgericht Stuttgart HRB 23347 | USt-IdNr.: DE 152272639

The simulation project you have sent will be stored on the local servers of Transsolar Energietechnik GmbH for the duration of the project support. Our employees are obliged by us to confidentiality. After this period, all project-related data is deleted.

The storage of your personal e-mail and other contact information is based on the mutual interest in the execution of this traffic and on a mutual business contact. If you have any questions, please contact our data protection officer at privacy at transsolar.com<mailto:privacy at transsolar.com>. Our privacy policy can be found here<http://www.trnsys.de/docs/userservice/userservice_dataprivacy_en.htm>.

________________________________
Von: TRNSYS-users <trnsys-users-bounces at lists.onebuilding.org> im Auftrag von Toni Calabrese via TRNSYS-users <trnsys-users at lists.onebuilding.org>
Gesendet: Dienstag, 16. März 2021 18:00
An: TRNSYS users mailing list at OneBuilding.org <trnsys-users at lists.onebuilding.org>
Cc: Toni Calabrese <toni.calabrese at ost.ch>
Betreff: [TRNSYS-users] Problem with adjacent window








Hi,

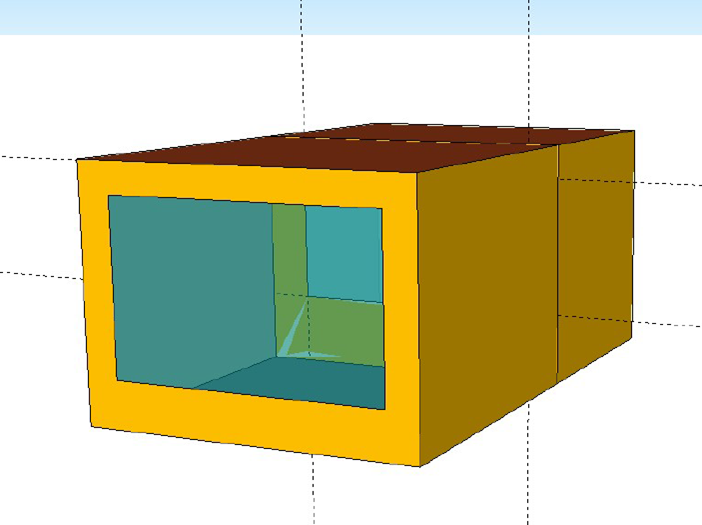

I am working in Trnsys18. I have a building model with two thermal zones (Wintergarten and one room) with an external window for the wintergarten and an adjacent window between the two zones. If I set the external shading factor of the external window to 1, I have no solar gains in the two zones, as it should be -> CORRECT!



I tried then to shade just the adjacent window between the two zones (int. shading factor of 1 in TRNBUILD) and I expected solar gains just in the wintergarten, but not in the room. I got solar gains in both zones. It seems that I am not able to shade completely just the adjacent window.



Which is the problem?









[cid:image004.png at 01D71A8E.4EE1FB70]
