[TRNSYS-users] Dome Problem

Michele Vella michele.vella.15 at um.edu.mt
Wed Feb 27 13:17:12 PST 2019


What's the best practice to model a dome as a flat surface?

On Wednesday, 27 February 2019, Mario González <marioglezx at gmail.com> wrote:

> Michele,
>
> I think that your problem is the geometry. To simulate a building in
> TRNSYS, you have to modelate flat surfaces.
>
> Regards,
> Mario.
>
>
>>
>> ---------- Forwarded message ----------
>> From: Michele Vella <michele.vella.15 at um.edu.mt>
>> To: trnsys-users at lists.onebuilding.org
>> Cc:
>> Bcc:
>> Date: Wed, 27 Feb 2019 18:00:42 +0100
>> Subject: [TRNSYS-users] Dome Problem

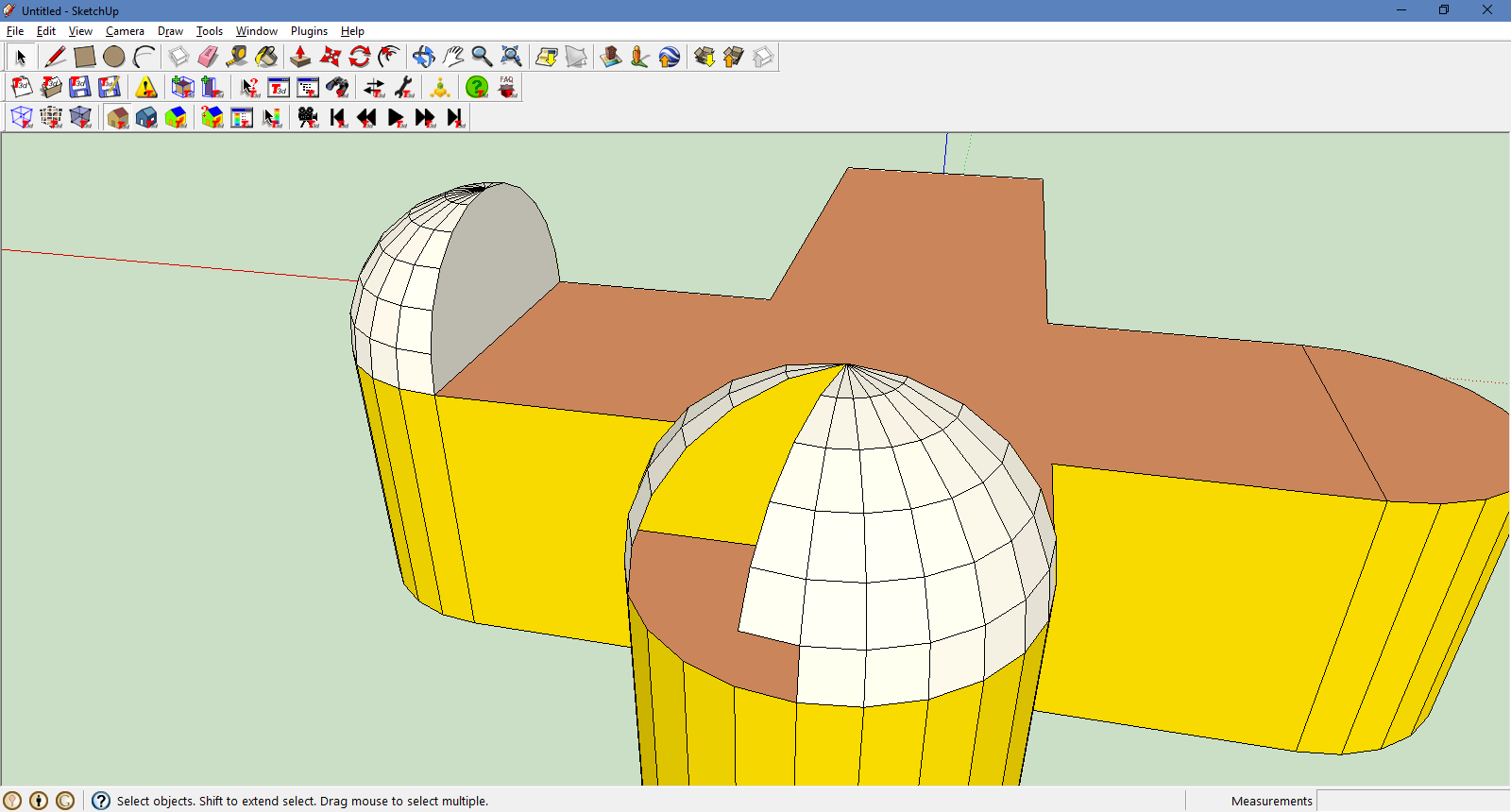

>> [image: image.png]
>> Im trying to draw up a church with domes and when opening the idfs it is
>> showing as shown above. Also importing into the trnsys sim template the
>> following deck error is showing:
>>
>> Warning: A link or connection has not been created between the component
>> Weather data-2 and the component Radiation!
>> The component Weather data-2 have not enough output (less than 136)!
>>
>
