[TRNSYS-users] Creating Monthly or Yearly Scenarios in TRNSYS Using Daily Profiles (Type 9)

Manal Ach-chakhar manal.achchakhar at gmail.com
Wed Apr 9 07:14:00 PDT 2025


Hello,

I’m currently working on a TRNSYS project and have created two daily
24-hour profiles using Type 9 with .txt files:

One for weekdays

One for weekends and holidays

Now, I would like to expand these daily profiles to cover a full month or
an entire year, by repeating the appropriate daily profiles according to
the calendar. I would like to do this without using Python or Matlab.

Is there a built-in way in TRNSYS to combine these daily profiles to create
a monthly or yearly time series input? For example, is there a component
(like another Type) or a recommended method within TRNSYS to manage this
kind of time-based switching?

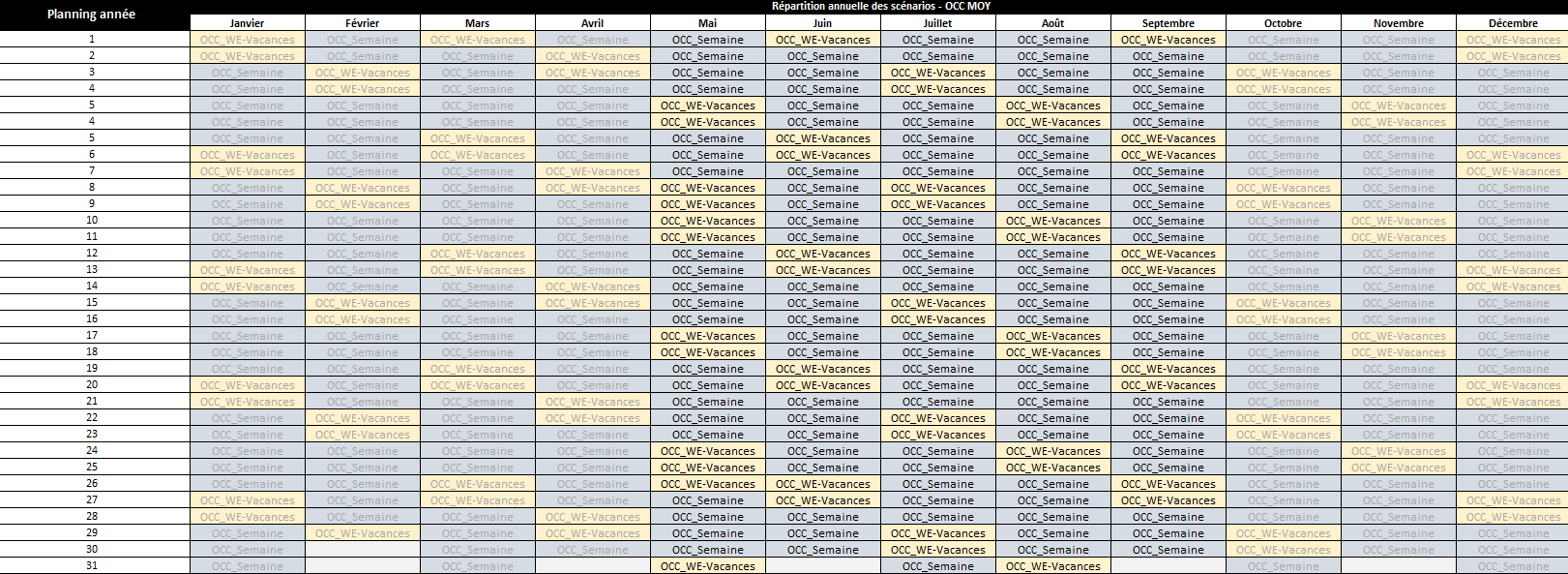

I’ve attached a screenshot showing how the different daily profiles should
be distributed throughout the year (weekdays, weekends, and holidays).
Could you please advise me on the best approach to implement this in TRNSYS
in an automatic or semi-automatic way, without relying on external
scripting?

Thank you in advance for your support.
Best regards,
[image: image.png]
