[Equest-users] Parametric Run for Fan Cycling on Demand

[Haberl, Jeff]

Hello Ahmad.

To figure out what’s going on I suggest you first get it running in the baseline condition, then add one or two runs with the new condition. Do this separately. Then start again and add the parametric run and compare.

Jeff

Jeff S. Haberl, Ph.D., P.E.inactive, FASHRAE, FIBPSA
Department of Architecture
Texas A&M University
College Station, Texas 77845-3581
Office: 979-845-6507, Lab: 979-845-6065
Fax: 970-862-2457, jhaberl at tamu.edu, www.esl.tamu.edu

On Jun 5, 2025, at 5:34 PM, Ahmad Fraij via Equest-users <equest-users at lists.onebuilding.org> wrote:


Hello All, I am trying to add a parametric run to make the supply fan cycle based on cooling and heating demands but when I set up the parametric run as per the screenshot below and run simulation, all the space heating energy consumption disappear
ZjQcmQRYFpfptBannerStart
This Message Is From an External Sender
This message came from outside your organization.

ZjQcmQRYFpfptBannerEnd
Hello All,

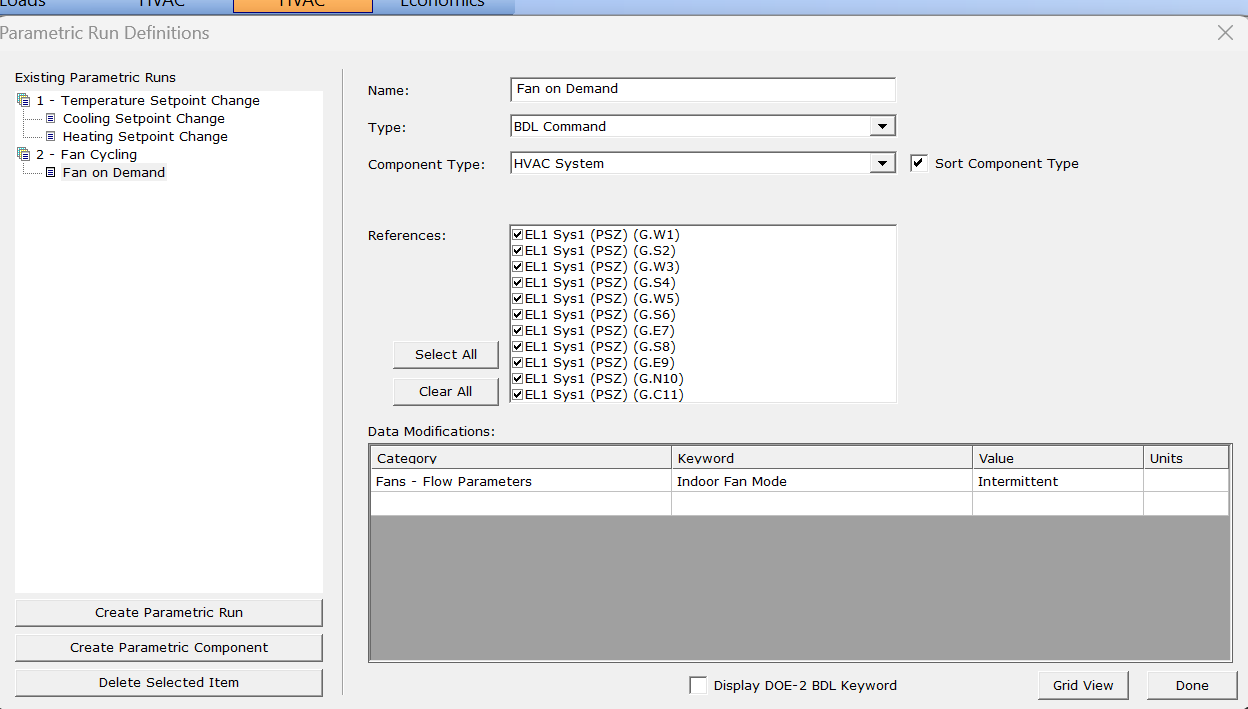

I am trying to add a parametric run to make the supply fan cycle based on cooling and heating demands but when I set up the parametric run as per the screenshot below and run simulation, all the space heating energy consumption disappear from the report as there is no heating system. So, am I setting up the correct parametric run as below or I am missing something? I have also attached the Equest files for this project if anyone can help please. Thank you

<1749162390347blob.jpg>


<1749162390347blob.jpg>
<Retail Store.inp>
<Retail Store.pd2>
<Retail Store.prd>
