[Equest-users] [EXTERNAL] Re: HVAC summary cooling tower error in DOE-2.3

Fri Jan 10 15:34:37 PST 2025

Nice! Hopefully, hot gas reheat will make the list with cold climate heat pump curves. Any timeframe to see an updated release?

Grant Page PE, LEED AP BD+C
Energy/Sustainability Sr. Engineer | Mason & Hanger
A Day & Zimmermann Company
O 859.550.2272
300 West Vine Street Suite 1500 | Lexington, KY 40507
masonandhanger.com <https://www.masonandhanger.com/>

An ISO 9001 Certified Company <https://www.masonandhanger.com/about/iso>

Building a More Secure World ®

CAUTION - THIS EMAIL MAY CONTAIN CONFIDENTIAL INFORMATION

This electronic mail transmission and any accompanying documents may contain information belonging to the sender, which may be proprietary, confidential, and/or otherwise subject to restrictions on disclosure beyond the intended recipient. This information is intended only for the use of the individual or entity to whom this electronic mail transmission was sent as indicated above. If you are not the intended recipient, any disclosure, copying, distribution, or action taken in reliance on the contents of the information contained in this transmission is strictly prohibited. If you have received this transmission in error, please call 1-703-955-5702 and delete this transmission. Thank you.

From: Maria Karpman <maria.karpman at karpmanconsulting.net>
Sent: Friday, January 10, 2025 3:29 PM
To: Page, Grant B <Grant.Page at masonandhanger.com>
Cc: Bill Bishop <William.J.Bishop at imegcorp.com>; Brian Fountain <Brian.Fountain at sa-footprint.com>; equest-users at onebuilding.org
Subject: Re: [Equest-users] [EXTERNAL] Re: HVAC summary cooling tower error in DOE-2.3

You don't often get email from maria.karpman at karpmanconsulting.net<mailto:maria.karpman at karpmanconsulting.net>. Learn why this is important<https://aka.ms/LearnAboutSenderIdentification>
Hi Grant,

eQUEST, along with several other commonly used building energy modeling tools, received DOE funding through the two rounds of the Resilient and Efficient Code Implementation (RECI) initiative (RECI1<https://www.energy.gov/eere/buildings/articles/meet-btos-newest-projects-support-more-resilient-and-efficient-building>, RECI2<https://www.energy.gov/eere/buildings/articles/meet-btos-2024-cohort-projects-support-more-resilient-and-efficient>). The funded scope includes streamlining and automating 90.1 Appendix G modeling and model reviews and a few other upgrades. So I am glad that modeling pros like Bill keep eQUEST wish lists :-).

Thanks,

Maria

On Fri, Jan 10, 2025 at 1:56 PM Page, Grant B via Equest-users <equest-users at lists.onebuilding.org<mailto:equest-users at lists.onebuilding.org>> wrote:
Will there ever be any eQuest fixes and improvements? Just wondering since the lasts version is, what, 8 years old now? Bill, Do you have any insight on eQuest development? Thanks!

From: Equest-users <equest-users-bounces at lists.onebuilding.org<mailto:equest-users-bounces at lists.onebuilding.org>> On Behalf Of Bill Bishop via Equest-users
Sent: Friday, January 10, 2025 1:12 PM
To: Brian Fountain <Brian.Fountain at sa-footprint.com<mailto:Brian.Fountain at sa-footprint.com>>; equest-users at onebuilding.org<mailto:equest-users at onebuilding.org>
Subject: [EXTERNAL] Re: [Equest-users] HVAC summary cooling tower error in DOE-2.3

CAUTION: This Email is from an EXTERNAL source. Do not click links or open attachments unless you recognize the sender and know the content is safe.

Hi Brian,

I get the same error and I don’t know how to fix it. I’ll add it to my wish list of eQUEST improvements and fixes.

Thanks,
~Bill

William Bishop, PE, CEM, LEED AP, ASHRAE (BEMP, BEAP, CDP)
Senior Associate / Sustainability & Energy Engineer of Distinction
[Pathfinder | now IMEG]<https://pathfinder-ea.com/>
Pathfinder | now IMEG                                                           (585) 698-1956 | phone
134 South Fitzhugh Street | Rochester, NY 14608                  (315) 879-1122 | mobile
William.J.Bishop at imegcorp.com<mailto:William.J.Bishop at imegcorp.com>  website<https://pathfinder-ea.com/> | vCard<https://dynasend.com/signatures/vcard/William.J.Bishop-at-imegcorp.com.vcf> | map<https://www.google.com/maps/place/Pathfinder+Engineers+%26+Architects+LLP/@43.1504815,-77.6145058,17z/data=!3m1!4b1!4m6!3m5!1s0x89d6b4fe9e48aab1:0x6991ae3d559d5aee!8m2!3d43.1504776!4d-77.6119309!16s%2Fg%2F1tcw955j?hl=en&entry=ttu> [Twitter] <https://merlin.allaboutbirds.org/>  [Facebook] <https://fossilfreefunds.org/>   [LinkedIn] <https://www.linkedin.com/company/imeg-corp>
Learn more<https://www.imegcorp.com/news_events/new-york-based-pathfinder-engineers-joins-imeg/> about our transition to IMEG.   Ride your bike!  [A person on a motorcycle    Description automatically generated]

From: Equest-users <equest-users-bounces at lists.onebuilding.org<mailto:equest-users-bounces at lists.onebuilding.org>> On Behalf Of Brian Fountain via Equest-users
Sent: Friday, January 10, 2025 9:55 AM
To: equest-users at onebuilding.org<mailto:equest-users at onebuilding.org>
Subject: [Equest-users] HVAC summary cooling tower error in DOE-2.3

External Email: Treat links and attachments with caution.
When you add the line:

   StoreResults_HVAC_Summary=1

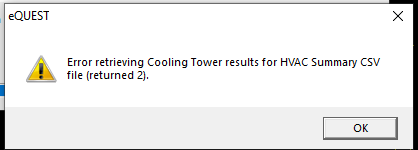

… to equest.ini, eQUEST generates a helpful HVAC summary .csv.   However, in 2.3, the reporting format of the PS-H changed for cooling towers resulting in this error when there is a cooling tower in the model:

[cid:image006.png at 01DB638E.4BA964A0]

Has anyone found a fix for this error?  (It slows parametric runs which is problematic.)

Brian

Footprint

Brian Fountain P.Eng.

_______________________________________________
Equest-users mailing list
http://lists.onebuilding.org/listinfo.cgi/equest-users-onebuilding.org
To unsubscribe from this mailing list send  a blank message to EQUEST-USERS-UNSUBSCRIBE at ONEBUILDING.ORG<mailto:EQUEST-USERS-UNSUBSCRIBE at ONEBUILDING.ORG>

--

Maria Karpman LEED AP, BEMP, CEM

________________

Karpman Consulting

www.karpmanconsulting.net<http://www.karpmanconsulting.net/>

Phone 860.430.1909<tel:860.430.1909>
