[Equest-users] 15 minute interval peak demand data in eQuest

[David S Eldridge]

What did you want to see in the 15-minute data?

The simulation engine is using hourly time steps and all of the inputs are hourly inputs so I think you’d need a different approach if you need 15 minute data for anything other than the start-up load example given below by Patrick.

For whole-building 15-minute data you’d need to provide your own loads and internal gains as well as weather data to drive any higher resolution changes.

David


David S. Eldridge, Jr., P.E., BEMP, BEAP, HBDP, GGF/GGA
Associate

Direct: (847) 316-9224 | Mobile: (773) 490-5038

Grumman|Butkus Associates | 820 Davis Street, Suite 300 | Evanston, IL 60201
Energy Efficiency Consultants and Sustainable Design Engineers

grummanbutkus.com<https://urldefense.proofpoint.com/v2/url?u=http-3A__grummanbutkus.com_&d=DwMGaQ&c=slrrB7dE8n7gBJbeO0g-IQ&r=ShmQAJmy3X5eV4r6X3T33w&m=MknjvOyW-jX4p6k_hlPiOpkbP7B30Xpyruf3HeJ672w&s=OF7GUOVclCMXxvC09s6TdxrqsPiVF5HqldYAy_-LSsM&e=> | Blog<https://urldefense.proofpoint.com/v2/url?u=http-3A__grummanbutkus.com_blog&d=DwMGaQ&c=slrrB7dE8n7gBJbeO0g-IQ&r=ShmQAJmy3X5eV4r6X3T33w&m=MknjvOyW-jX4p6k_hlPiOpkbP7B30Xpyruf3HeJ672w&s=lWw1J2R22IpbRIl5ov3HwSnJCS7VjQ3r_Y6cxGnji5o&e=> | Facebook<https://urldefense.proofpoint.com/v2/url?u=https-3A__www.facebook.com_pages_GrummanButkus-2DAssociates_1385285015032526&d=DwMGaQ&c=slrrB7dE8n7gBJbeO0g-IQ&r=ShmQAJmy3X5eV4r6X3T33w&m=MknjvOyW-jX4p6k_hlPiOpkbP7B30Xpyruf3HeJ672w&s=g8g2PjyxyJnSuMUT22YnID2YwsdLn-6sfOguC3BRBqQ&e=> | Twitter<https://urldefense.proofpoint.com/v2/url?u=https-3A__twitter.com_grummanbutkus&d=DwMGaQ&c=slrrB7dE8n7gBJbeO0g-IQ&r=ShmQAJmy3X5eV4r6X3T33w&m=MknjvOyW-jX4p6k_hlPiOpkbP7B30Xpyruf3HeJ672w&s=iNZWF4qzDSCd8QjwMv0-TO2uyKa9t15asLMOLuDvbM4&e=>

From: Equest-users <equest-users-bounces at lists.onebuilding.org> On Behalf Of Gopi K Subbiah via Equest-users
Sent: Wednesday, February 19, 2025 8:04 AM
To: Lapierre, Patrick <plapierre at bpa.ca>
Cc: equest-users <equest-users at lists.onebuilding.org>
Subject: Re: [Equest-users] 15 minute interval peak demand data in eQuest

Hello Patrick,

Thank you for your insight! I reviewed both ES-F/PS-E reports for peak demand. I was interested to see 15 min interval data for xendee modeling and It's unfortunate that equest can't produce them.

Thanks
Gopi


On Wed, Feb 19, 2025 at 7:01 PM Lapierre, Patrick <plapierre at bpa.ca<mailto:plapierre at bpa.ca>> wrote:
Hi Gopi,

Unfortunately, there’s no way to pull detailed 15 minutes demand interval as eQUEST only reports hourly values.
You can get the monthly peak 15-min demand kW from the ES-F report.

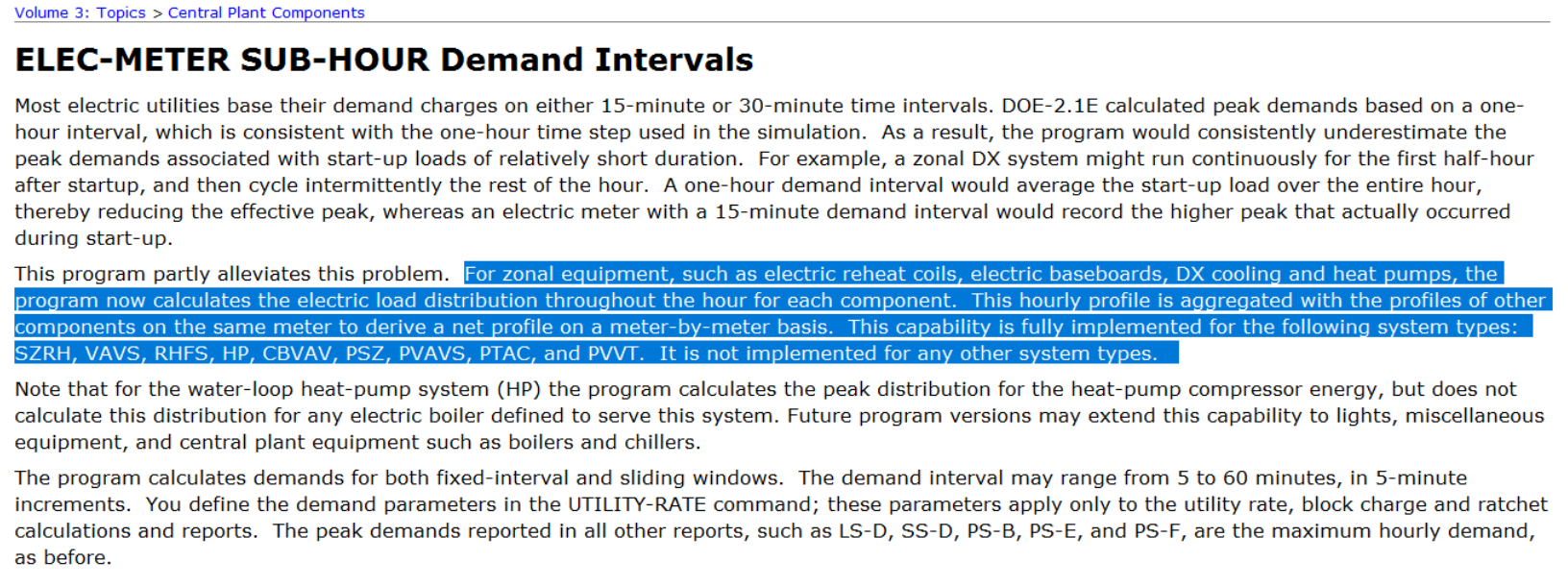

DOE-2 has a generic sub-hourly profile for each electric component of the systems listed in the snapshot below and uses that profile to determine sub-hourly demand values. This is all within the black box though.
Volume 3 > Topics > Central Plant Components > ELEC-METER SUB-HOUR Demand Intervals

[cid:image001.png at 01DB82BD.F192A130]

Regards,


[cid:image002.png at 01DB82BD.F192A130]







Patrick Lapierre

,

 ing., BEMP

 / P.Eng., BEMP

Directeur de projet, Développement durable

Sustainability Project Director

T:

514-383-3747<tel:514-383-3747>

x

2807

 |

C:

438-876-6492<tel:438-876-6492>

bpa.ca<http://bpa.ca/>

BPA respecte le droit à la déconnexion et valorise l'équilibre travail‑vie personnelle.
Merci de répondre à ce courriel au moment qui vous convient.

BPA respects its employees’ right to disconnect and values work‑life balance.
Feel free to reply to this email whenever it’s convenient for you.

De : Equest-users <equest-users-bounces at lists.onebuilding.org<mailto:equest-users-bounces at lists.onebuilding.org>> De la part de Gopi K Subbiah via Equest-users
Envoyé : 19 février 2025 08:12
À : equest-users <equest-users at lists.onebuilding.org<mailto:equest-users at lists.onebuilding.org>>
Objet : [Equest-users] 15 minute interval peak demand data in eQuest

Good morning! If there is a chance to pull peak demand kW with 15 minutes interval data in eQuest? Appreciate your help.

Thanks
Gopi
