Hi Gopi,

Unfortunately, there’s no way to pull detailed 15 minutes demand interval as eQUEST only reports hourly values.
You can get the monthly peak 15-min demand kW from the ES-F report.

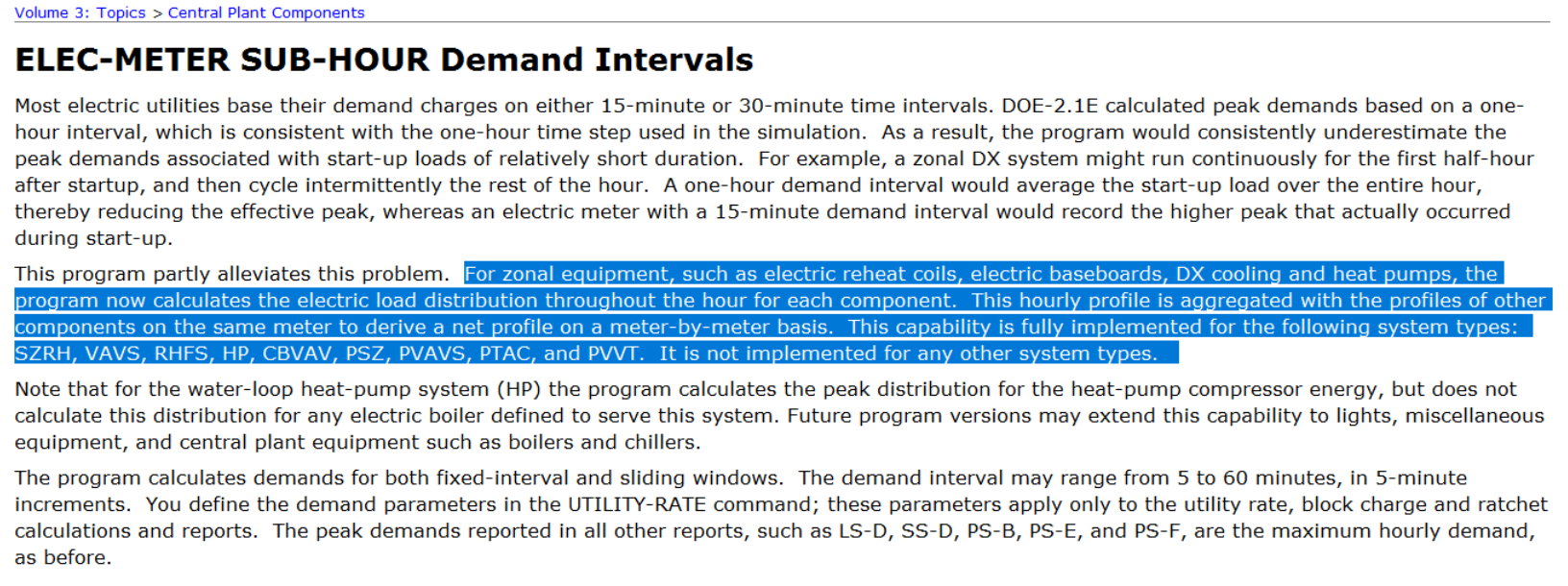

DOE-2 has a generic sub-hourly profile for each electric component of the systems listed in the snapshot below and uses that profile to determine sub-hourly demand values. This is all within the black box though.
Volume 3 > Topics > Central Plant Components > ELEC-METER SUB-HOUR Demand Intervals

[cid:image003.png at 01DB82A8.95A819A0]

Regards,


[cid:image001.png at 01DB82A8.4EBF5440]

    ​​​​





Patrick Lapierre

,

 ing., BEMP

 / P.Eng., BEMP

Directeur de projet, Développement durable

​Sustainability Project Director

T:

514-383-3747<tel:514-383-3747>

x

2807

 |

C:

438-876-6492<tel:438-876-6492>

bpa.ca<http://bpa.ca/>

​BPA respecte le droit à la déconnexion et valorise l'équilibre travail‑vie personnelle.
​Merci de répondre à ce courriel au moment qui vous convient.​​

BPA respects its employees’ right to disconnect and values work‑life balance.
​Feel free to reply to this email whenever it’s convenient for you.

De : Equest-users <equest-users-bounces at lists.onebuilding.org> De la part de Gopi K Subbiah via Equest-users
Envoyé : 19 février 2025 08:12
À : equest-users <equest-users at lists.onebuilding.org>
Objet : [Equest-users] 15 minute interval peak demand data in eQuest

Good morning! If there is a chance to pull peak demand kW with 15 minutes interval data in eQuest? Appreciate your help.

Thanks
Gopi
