[Equest-users] Fwd: Questions to input/select conditions in e-quest (district plant)

[Jim Weiner]

hoping the visuals work for this...
We are modeling a 17 story office building in Tokyo that draws power from a
district plant and have basic questions about setting up per the attached
screenshots. We would also find direction to a guidance for entering custom
rate schedules for fuel costs useful.

many thanks - j

--
James Weiner, AIA
Collaborative Project Consulting
-------------- next part --------------
An HTML attachment was scrubbed...
URL: http://lists.onebuilding.org/pipermail/equest-users-onebuilding.org/attachments/20080430/3297c26c/attachment-0001.htm
-------------- next part --------------
A non-text attachment was scrubbed...

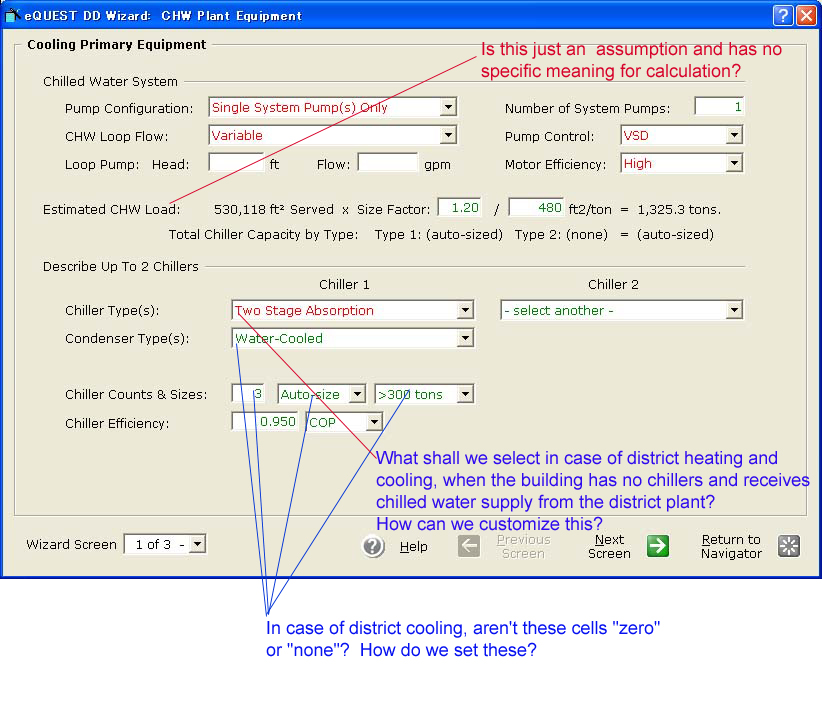

Name: Question to JW 20080430 CHW-01.JPG
Type: image/jpeg
Size: 289819 bytes
Desc: not available
Url : http://lists.onebuilding.org/pipermail/equest-users-onebuilding.org/attachments/20080430/3297c26c/attachment-0004.jpeg
-------------- next part --------------
A non-text attachment was scrubbed...

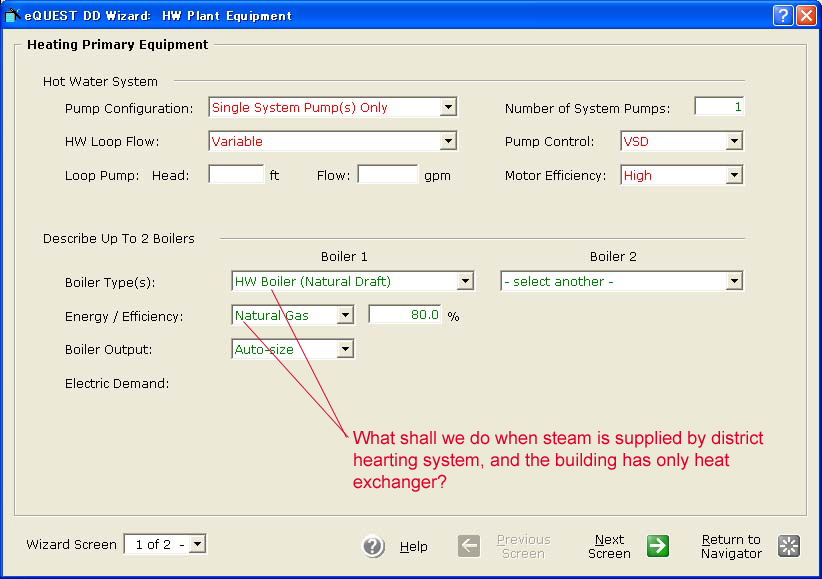

Name: Question to JW 20080430 HW-02.JPG
Type: image/jpeg
Size: 180773 bytes
Desc: not available
Url : http://lists.onebuilding.org/pipermail/equest-users-onebuilding.org/attachments/20080430/3297c26c/attachment-0005.jpeg
-------------- next part --------------
A non-text attachment was scrubbed...

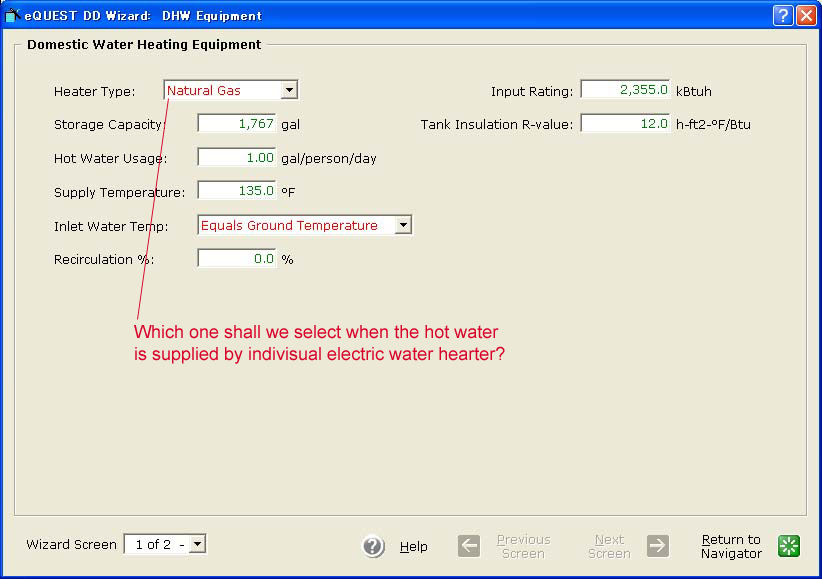

Name: Question to JW 20080430 HW-01.JPG
Type: image/jpeg
Size: 140637 bytes
Desc: not available
Url : http://lists.onebuilding.org/pipermail/equest-users-onebuilding.org/attachments/20080430/3297c26c/attachment-0006.jpeg
-------------- next part --------------
A non-text attachment was scrubbed...

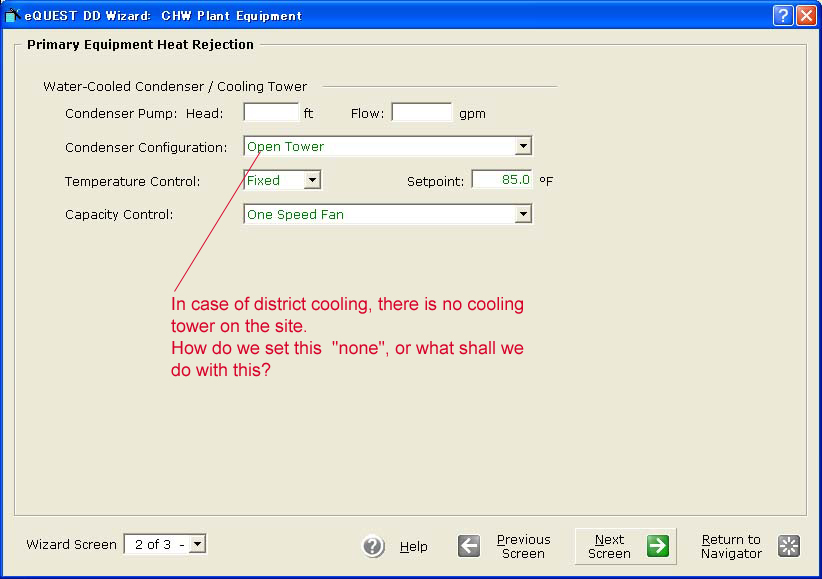

Name: Question to JW 20080430 CHW-02.JPG
Type: image/jpeg
Size: 139560 bytes
Desc: not available
Url : http://lists.onebuilding.org/pipermail/equest-users-onebuilding.org/attachments/20080430/3297c26c/attachment-0007.jpeg
